ceiling c profile
PURPOSE OF USE

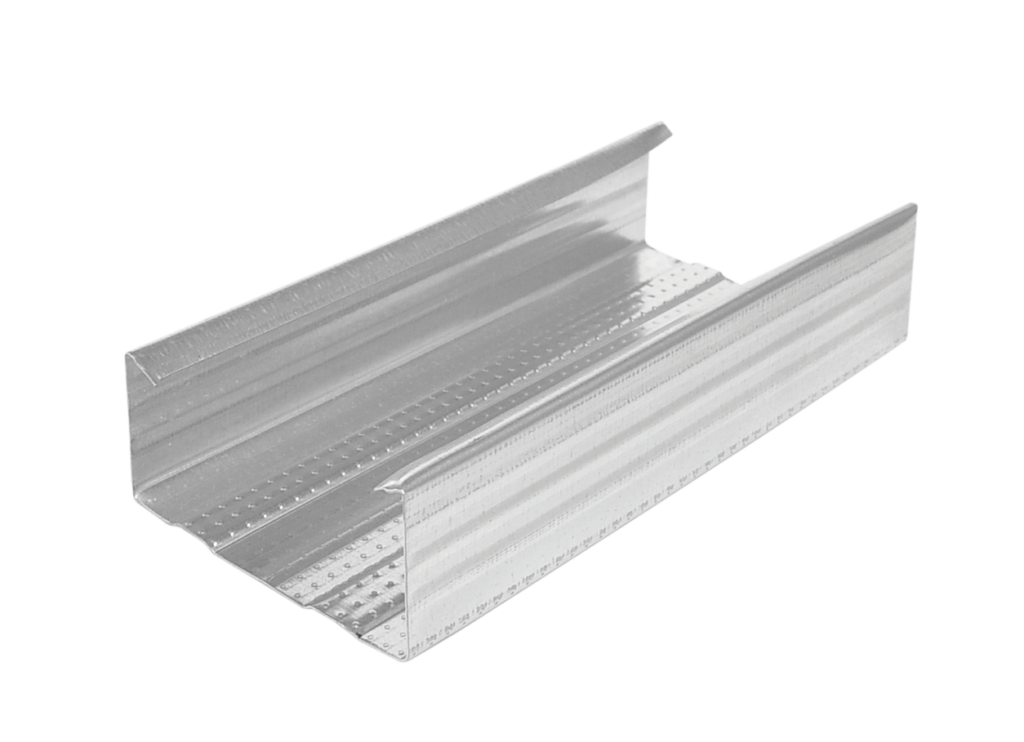

Ceiling C Profile is the main element of the metal construction made of hot-dip galvanized steel, which established in the construction of plasterboard suspended ceilings.
MATERIAL
The materials used in the production of profiles comply with TS EN 10346 standard, steel type DX51D+Z100, fire resistance class A1, zinc coating thickness Z100 gr/m², tensile strength value of 270-500 N/mm², elongation at break of 22%. The standard length of the profiles is 3 meters. Production is made in the range of 2.00-8.00 meters for special orders.
MATERIAL THICKNESSES
Ceiling C is produced in the range of 0.40-0.70 (+/- 0.02) mm according to the customer request.
PROFILE DIMENSIONS
| PRODUCT NAME | DIMENSIONS(mm) | LENGTH (mm) | WEIGHT (kg)/m |
| Ceiling C (Power) Profile (0,40 mm) | 27/60/27 | 3000 | 0,389 |
| Ceiling C Profile (0,40 mm) | 27/60/27 | 3000 | 0,389 |
| Ceiling C Profile (0,45 mm) | 27/60/27 | 3000 | 0,438 |
| Ceiling C Profile (0,50 mm) | 27/60/27 | 3000 | 0,486 |
| Ceiling C Profile (0,60 mm) | 27/60/27 | 3000 | 0,584 |
STANDARDS
Plasterboard profiles are produced in accordance with TS EN 14195 standards.
