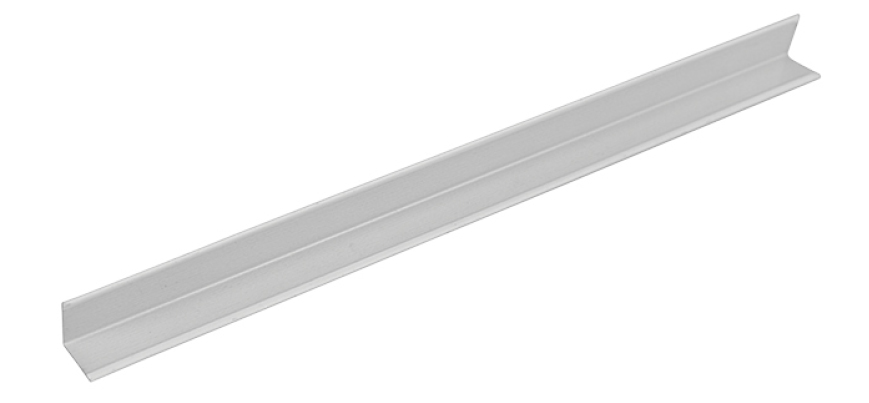

painted l corner profile
PURPOSE OF USE
Painted L Corner Profile is used in metal construction systems installed in the construction of plasterboard suspended ceilings.
MATERIAL
The materials used in the production of profiles comply with TS EN 10346 standard, steel type DX51D+Z100, fire resistance class A1, zinc coating thickness Z100 gr/m², tensile strength value of 270-500 N/mm², elongation at break of 22%. The standard length of the profiles is 3 meters. Production is made in the range of 2.00-8.00 meters for special orders.
MATERIAL THICKNESSES
Painted L Corner Profile is produced in 0.40 (+/- 0.02) mm thickness.
PROFILE DIMENSIONS
| PRODUCT NAME | DIMENSIONS (mm) | LENGTH (mm) | WEIGHT (kg)/m |
| Painted L Corner Profile (0,40 mm) | 19/19 | 3000 | 0,135 |
STANDARDS
Plasterboard profiles are produced in accordance with TS EN 14195 standards.
