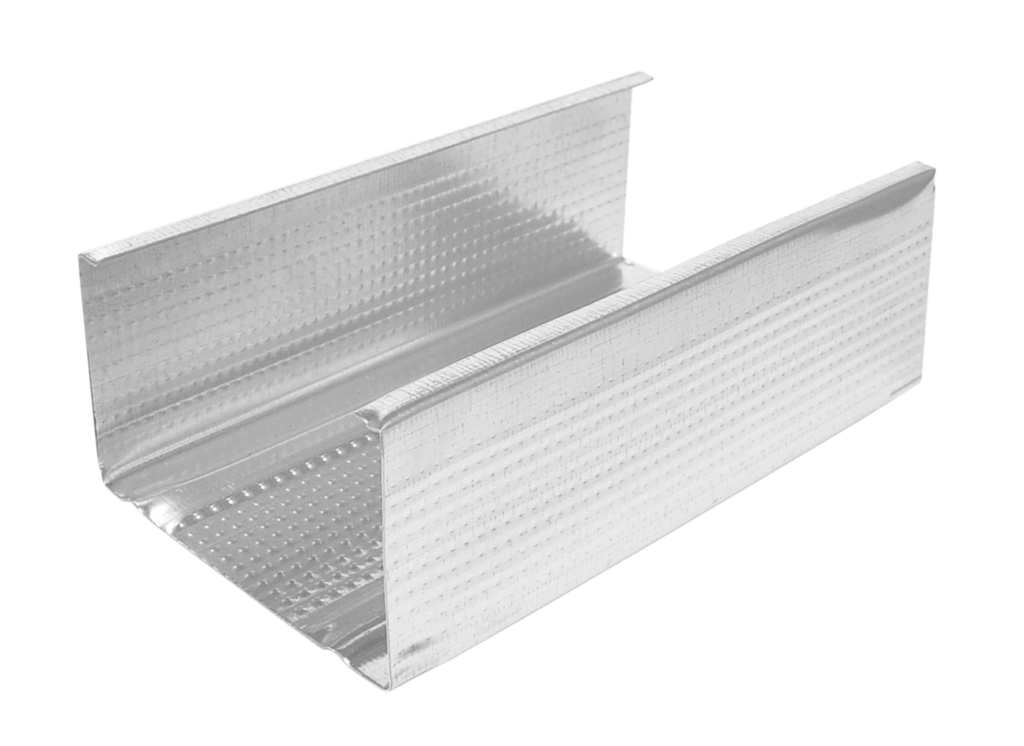

wall c 75 profile
PURPOSE OF USE
Wall C 75 Profiles are carrier elements made of metal construction hot-dip galvanized steel established in the construction of plasterboard partition walls.
MATERIAL
The materials used in the production of profiles comply with TS EN 10346 standard, steel type DX51D+Z100, fire resistance class A1, zinc coating thickness Z100 gr/m², tensile strength value of 270-500 N/mm², elongation at break of 22%. The standard length of the profiles is 3 meters. Production is made in the range of 2.00-8.00 meters for special orders.
MATERIAL THICKNESSES
Wall C 75 Profile is produced in the range of 0.45-0.60 (+/- 0.02) mm according to the customer request.
PROFILE DIMENSIONS
| PRODUCT NAME | DIMENSIONS (mm) | LENGTH (mm) | WEIGHT (kg)/m |
| Wall C 75 Profile (0,45 mm) | 35/74/35 | 3000 | 0,533 |
| 42/74/42 | 3000 | 0,583 | |
| 47/74/47 | 3000 | 0,618 | |
| Wall C 75 Profile (0,50 mm) | 35/74/35 | 3000 | 0,593 |
| 42/74/42 | 3000 | 0,648 | |
| 47/74/47 | 3000 | 0,686 | |
| Wall C 75 Profile (0,60 mm) | 35/74/35 | 3000 | 0,711 |
| 42/74/42 | 3000 | 0,777 | |
| 47/74/47 | 3000 | 0,824 |
STANDARDS
Plasterboard profiles are produced in accordance with TS EN 14195 standards.
